Metallic Portable Fiber Laser Marking Machine Narrow Laser Beam 1064nm Wavelength

Ask Lasest Price
Brand Name :	Rise laser
Model Number :	RLP-20
Certification :	ISO9001:2008
Price :	negotiation
Supply Ability :	2000 units/ month
Delivery Time :	5-9 working days

Add to Cart

Product Details
Company Profile

Metallic Portable Fiber Laser Marking Machine Narrow Laser Beam 1064nm Wavelength

Portable Metallic Fiber Laser Marking Machine for different material

^{Main Features:}

^{. Narrow laser beam, less work materials consumption, small heat
affected zone.
. Non-contact processing, no damage to products, no tool wear,
high-quality marking.
. High processing efficiency, controlled by computer, being easy to
realize automation.
. Processing metal & non-metal materials, especially the materials
of high hardness, high melting point and brittleness.
. Being qualified for bad work environment, being with very strong
tolerance to dust, shock, impact, humidityand temperature.}

^{. Being able to work with rotary device and working table to used
on jewelry marking}

^{Technical Parameters:}

^Product	^{Fiber Laser Marking Machine}
^{Fiber Laser Brand}	^{Standard: MAX Optional: IPG, JPT}
^{Fiber Laser Lifetime}	^{100,000 hours}
^{Fiber Laser Power}	^{20W, 30W, 50W, 100W, 200W}
^{Beam Quality}	^M2≤1.2
^{Max. Marking Speed}	^12000mm/s
^{Fiber Laser Wavelength}	^1064nm
^{Marking Area}	^{Standard: 110mm110mm Optional: 70mm70mm, 150mm150mm, 200mm200mm, 300mm*300mm}
^{High-speed Galvanometer}	^Yes
^Lens	^{F-Theta Lens}
^{Fiber Laser Repetition Frequency}	^{20KHz-80KHz 1-2000KHz for MOPA fiber laser}
^{Minimum character}	^0.05mm
^{Marking Depth}	^≤5mm
^{Repeated Accuracy}	^±0.001mm
^{Minimum Linewidth}	^0.01mm
^Volt	^{110V, 220V, or according to your request}
^{Cooling Mode}	^{Air Cooling}
^{Graphic Format Supported}	^{PLT, DXF, DXP, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF, DST, DWG, LAS, etc}
^{Software Supported}	^{CORELDRAW, AUTOCAD, PHOTOSHOP, etc}
^{System Supported}	^{Windows, MAC OS}
^{Operating Ambient Temperature}	^5°C-45°C
^{Marterial Supported}	^{Metal and Some Non-metal}
^{Marking Software}	^EZCAD
^{Desktop Computer}	^Yes
^{Training Videos, User Manua}	^Yes
^Warranty1	^{1 year}
^{Fiber Test Results}	^Yes
^Certificates	^{FDA, CE, ISO, CCC, PSE, IC, RoHS, EUT, FC}
^{Control Interface}	^{Standard USB 2.0}
^{Size (LWH)}	^{650mm210mm500mm}
^Weight	^35KG
^Optional	^{Laptop, Rotary Device, Working table}

Accessories:

^{1. High-speed Galvanometer.}

^{♦ Consist of optical scanner and servo controller, adopt new
technology, new material, meliorative operating principle.}

^{♦ Electric torsion bar replace traditional elastic material's
torsion bar, greatly improve service life and reliability of long
time work.}

^{♦ Vastly reduce delay, enhance marking speed, high repetition
frequnency.}

♦ Maximum marking speed 12000mm/s

^{2. Fiber Laser Transmitter.}

^{♦ Efficient light produced by electricity, consumed power is less
than 500W.}

^{♦ Imported pulsed type, TEMOO output, focusing spot diameter is
less than 20um.}

^{♦ Being suitable for subtle and precise marking.}

^{3. Field Lens.}

^{♦ Excellent focusing capability.}

^{♦ More accurate.}

^{♦ Improve marking quality on rough surface.}

♦ 110*110mm, 175*175mm, 200*200mm and 300*300mm available

^{4. Three Sets of Switch Power Supply.}

^{♦ Stable swith power supply makes fiber laser output smoothly.}

^{♦ Make alternating current turn into stable direct current, output
rectification and smoothing.}

^{5. High-quality Material.}

^{♦ Durable air plug.}

^{♦ Safer fine copper's cable core.}

^{6. Fiber Laser.}

^{♦ 10,0000 hours service life, about 11years.}

^{♦ 24 hours continuous working.}

^{♦ Same effect, excellent stability.}

^{♦ No need to maintain, being suitable for hostile environment.}

♦ IPG, JPT laser source available

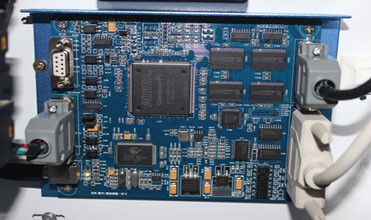

7. Control Card.

^{♦ Possess the function of graph aligning, red light preview,
external transmit to read date.}

^{♦ Being suitable for marking on the fly.}

^{♦ Providing hundreds of automatic marking and feeding program.}

^{♦ Being compatible with CORELDRAW, AUTOCAD, PHOTOSHOP, etc.}

^{♦ Supporting PLT, PCX, DXF, BMP etc, SHX, TTF etc of word stock can
be used directly.}

^{♦ Supporting automatic coding, serial number, batch number, date,
bar code, QR code, automatic number jumped, etc.}

^{♦ Graph, Chinese characters, number, English letters etc can be
designed freely.}

8. Cooling Dust Screen.

9. Portable Handle.

^{10. Working Table.}

^{♦ 2D table travel: Z=120mm (or according to your requirements).}

^{♦ 3D table travel: X=100mm, Y=50mm, Z=120mm (or according to your
requirements ).}

^{11. Rotary Device (optional).}

^{♦ Using stepper motor.}

^{♦ Digital Control.}

^{♦ Controllable speed.}

♦For ring marking in jewelry industry

^{Application Industrial:}

^{being widely used for figure and character mark & mass production
line, such as,
♦ computer accessories ♦ industrial bearings ♦ clocks and watches ♦
operation integrated circuit chips}

^{♦ aerospace components ♦ military products ♦ household appliances ♦
electronic products ♦ hardware tools} ^{♦ wire and cable ♦ food packaging ♦ all kinds of auto parts ♦ dies
♦ jewelry ♦ tobacco ♦ etc}

Applicable Material:

^Material	^{CO2 Laser machine}	^Material	^{fiber laser machine}
^Wood	^√	^Aluminum	^√
^Acryic	^√	^{Stainless Steel}	^√
^Fabric	^√	^ABS	^√
^Glass	^√	^Brass	^√
^{Coated Metals}	^√	^{Carbon Fiber}	^√
^Ceramic	^√	^{Carbon Nanotube}	^√
^Delrin	^√	^{Cobait Chorme Steel}	^√
^Cloth	^√	^Copper	^√
^Leather	^√	^{Colored Delrin}	^√
^Marble	^√	^{Diallyl Phthalate}	^√
^{Matte Board}	^√	^{Gless Filled PPEK}	^√
^Melamine	^√	^{Gless Filled Telfon}	^√
^Paper	^√	^Magnesium	^√
^Mylar	^√	^{Metal Plated Ceramics}	^√
^{Press Board}	^√	^Molybdenum	^√
^Rubber	^√	^{Mild Steel}	^√
^{Wood veneer}	^√	^Nylon	^√
^{Fiber Glass}	^√	^{Polybutylene Terephthalate}	^√
^{Paintde Metals}	^√	^Polysulphone	^√
^Title	^√	^PET	^√
^Plastic	^√	^Santoprene	^√
^Cork	^√	^{Silicon Carbide}	^√
^Corian	^√	^{Silicon Steel}	^√
^{Anodized Aluminum}	^√	^{Silicon Wafers}	^√
