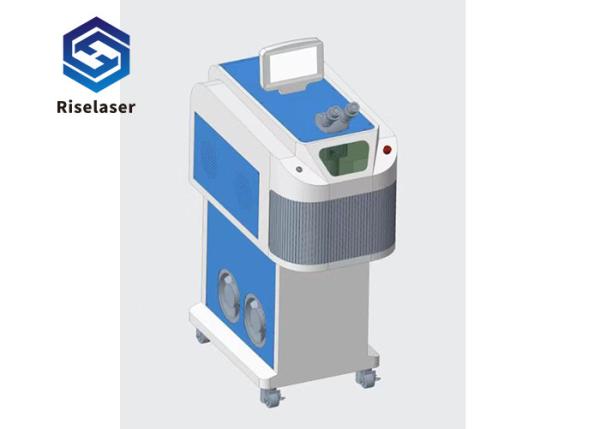

    200w YAG Jewelry Laser Soldering Machine With High Clear CCD

    Ask Lasest Price
    Brand Name : Riselaser
    Model Number : RL-Y200
    Certification : ISO, CE, FDA
    Price : Negotiable
    Supply Ability : 100 SET/WEEK
    Delivery Time : 5-9 working days
    • Product Details
    • Company Profile

    200w YAG Jewelry Laser Soldering Machine With High Clear CCD

    200w YAG Jewelry Laser Soldering Machine With High Clear CCD


    Jewelry laser welding machine adopts ergonomic design, suitable for professional appearance design of jewelry laser welding industry, equipped with special cross cursor microscope observation system, equipped with high-speed electronic filter device, which can protect the eyes of the operator. The high-power beam expansion system can obtain more small spots to meet the needs of fine laser spot welding; the whole machine is small in size, convenient to carry and transport, simple to operate, good welding effect, stable and reliable equipment, and low failure rate..


    200w YAG Jewelry Laser Soldering Machine With High Clear CCD


    200w YAG Jewelry Laser Soldering Machine With High Clear CCD


    Specification of jewelry laser soldering machine

    Model Name
    RL-Y200
    Laser Type
    1064nm
    Laser Power
    200W
    Laser Engery
    90J
    Pulse Width
    ≤20ms
    Pulse Frequency
    ≤30Hz
    Positioning accuracy
    +/-0.02mm
    Size of Light Spot
    0.2-2.0mm
    Observing System
    microscope

    200w YAG Jewelry Laser Soldering Machine With High Clear CCD

    Machine video


    Samples

    200w YAG Jewelry Laser Soldering Machine With High Clear CCD


    Application of jewelry laser soldering machine

    Jewelry laser welding machine is mainly used for filling holes and point trachoma of gold and silver jewelry, and is widely used for spot welding of micro-precision parts, such as jewelry, battery nickel strips, IC leads, watch springs, electron tubes, electron gun components, and other fields.


    After-sales service
    We guarantee that all our laser machines have a 1-year warranty (excluding wearing parts). A large amount of feedback from our customers proves that our laser machine has stable performance and rarely fails. However, once a failure occurs, we hope to deal with it in the following way:

    1. We promise to give you a clear answer within 24 hours.
    2. The customer service staff will assist and guide you to analyze the fault and locate the cause.
    3. If the fault is caused by a soft fault such as improper software operation, we will help solve the problem online.
    4. If it proves that a part is damaged, we will provide you with a replacement part as soon as possible.
