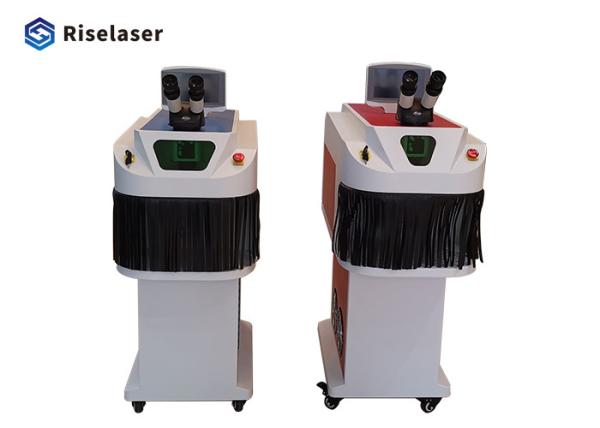

Laser Power 200W Jewelry Spot Welding Machine 3KW Power Consumption

High quality jewelry spot welding machine

Machine Functions

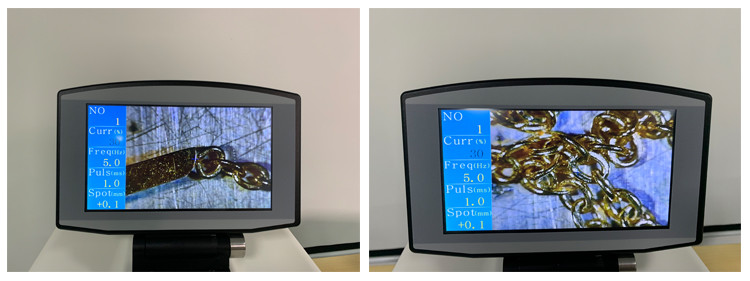

1. Observation system: The observation system of this jewelry spot welding machine consists of a microscope and a built-in high-definition CCD camera. Users can choose one or two of them as the observation method according to their needs. Both can clearly observe the welding position of the workpiece, which is convenient for welding.


2. Adjustment of the CCD cross cursor: If the CCD camera system is in a very clear position, and the light spot is not in the center of the cross cursor, you can change the position of the cross cursor by clicking the four middle positions.​​​ On both sides of the screen, make the solder joints in the center of the cursor

3. For welding operation, first make sure that the machine is turned on normally, put the workpiece into the sight range of the observation system, and then slowly move to the clearest position of the observation system.
Point the cursor to the desired welding position, gently step on the foot switch, the machine has laser output for welding.

4. Parameter adjustment and focus adjustment. After the first welding, the welding effect of the solder joints does not meet the requirements, and the parameters need to be re-adjusted. Adjust the focal length (-3.0-+3.0), so that the welding effect can meet the requirements, and the welding will not be repeated later. Need to be adjusted again.

Operating system support languages: Chinese, Turkish, Arabic, English, Korean, and other customized languages


Specification of Laser Soldering Machine Jewelry

Machine dimension



FAQ of Laser Soldering Machine Jewelry
Q1. How to get the most suitable machine and the best price
Please tell us the material you want to weld and the application environment?

Q2. If we don’t know how to use the machine, can you teach us?
Yes, we will, the English manual and video will be provided with the machine. If you need any help in using our machine, you can also contact our service team.

Q3. How about your after-sales service?
We provide you with 24-hour service via phone, Skype or Whatsapp.

Q4. Quality control:
The entire production process will be subject to regular inspections and strict quality control.
The whole machine will be tested before leaving the factory to ensure that they can work well.
Our machines have passed CE certification, comply with European and American standards, and are exported to more than 100 countries.

Q5. How do we pay you?
A. Ask us about this product online or via email.
B. Negotiate and confirm the final price, freight, payment method and other terms.
C. Send you a proforma invoice and confirm your order.
D. Pay according to the method on the proforma invoice.
E. After confirming your full payment, we will prepare your order according to the proforma invoice.
And 100% quality inspection before shipment.
F. Send your order by air or sea.

Machine video
