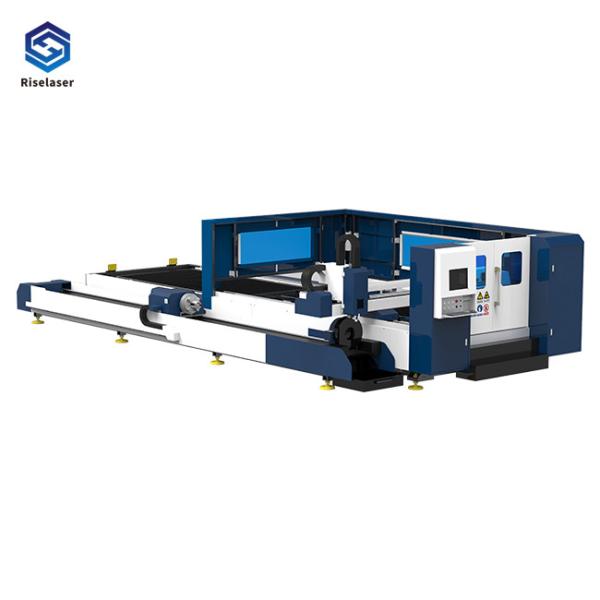

2000W Laser Cutting Machine Fiber Laser Cutter With Maxphotonics Laser

    Buy cheap 2000W Laser Cutting Machine Fiber Laser Cutter With Maxphotonics Laser from wholesalers

    Buy cheap 2000W Laser Cutting Machine Fiber Laser Cutter With Maxphotonics Laser from wholesalers
    • Buy cheap 2000W Laser Cutting Machine Fiber Laser Cutter With Maxphotonics Laser from wholesalers

    2000W Laser Cutting Machine Fiber Laser Cutter With Maxphotonics Laser

    Ask Lasest Price
    Brand Name : Riselaser
    Model Number : RL-PT3015-2000
    Certification : ISO9001:2008
    Price : negotiation
    Supply Ability : 2000 sets
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    2000W Laser Cutting Machine Fiber Laser Cutter With Maxphotonics Laser

    2000W Laser Cutting Machine Fiber Laser Cutter With Maxphotonics Laser


    2000W Fiber Laser Metal Cutting Machines with Maxphotonics Laser

    Features Metal Cutting Machine Fiber Laser:

    1. High quality laser beam: smaller focal spot, refined cutting kerfs, higher working efficiency, better processing quality.

    2. Rapid cutting speed: the cutting speed is twice as fast as CO2 laser (cutting with equal laser power)

    3. Stable performance: laser device lifetime can be up to 400,000 working hours;

    4. High photoelectric conversion ratio: its efficiency is 3 times higher than common co2 laser, and it is energy-saving and environmentally friendly;

    5. Low running costs: gross power is just 20-30% of co2 laser.

    6. Low maintenance costs: no working gas for laser device; optical fiber transmission doesn’t need reflecting mirrors, which save lots of maintenance costs.

    7. Easy operation and maintenance: optical fiber transmission and no need to adjust the optical path;

    8. Flexible optical effects: compact volume and structure, easy to meet the requirement of flexible manufacturing.


    Main configuration:

    Item

    Name

    Quantity

    Brand

    Laser

    800W fiber laser

    1 SET

    Maxphotonics

    Cutting head

    Specialized cutting head

    1 SET

    RayTools BT( Switzerland)


    Machine bed

    1 SET

    China


    Precise Rack

    1 SET

    TAIWAN DINSENSE

    Machine body

    Precise linear guide rail

    1 SET

    TAIWAN HIWIN/ TAIWAN shac


    X,Y axis servo and driver

    1 SET

    LETRO


    Reducer system

    1 SET

    TAIWAN DINSENSE


    controller

    1 SET

    FRANCE Schneider


    Machine bed accessories

    1 SET

    China

    Digital cutting system

    Controller system

    1 SET

    Shanghai cypcut /Shanghai Empower

    Accessories

    Chiller

    1 SET

    Teyu


    Waste recycling equipment

    1 SET

    China


    Technical parameters:

    Model

    RL3015

    Laser Working Medium

    ND:YVO4

    Laser Wavelength

    1070 nm

    Power

    800 W/1000W/1500W

    Beam Quality

    <0.373mrad

    Max cutting thickness

    10mm carbon steel

    Working area

    3000mm×1500mm

    Positioning Accuracy

    ≤±0.05㎜/m

    Repeatition Accuracy

    ≤±0.05㎜/m

    Power Supply

    380V/50Hz


    Application of Cutting Machine Fiber Laser:

    Application Materials: Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.

    Application Industries: Fiber Laser Cutting Machines are widely used in manufacturing Billboard, Advertising, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, etc.


    1000w fiber Speed for example:

    Materialm/min
    carbon steel 1mm8
    carbon steel 2mm4.2
    carbon steel 3mm2.1
    carbon steel 4mm1.2
    stainless steel 1mm7.2
    stainless steel 1.5mm3
    stainless steel 2mm1.8
    galvanized sheet0.8mm5
    galvanized sheet1.2mm2.6
    galvanized sheet1.5mm

    1.8
