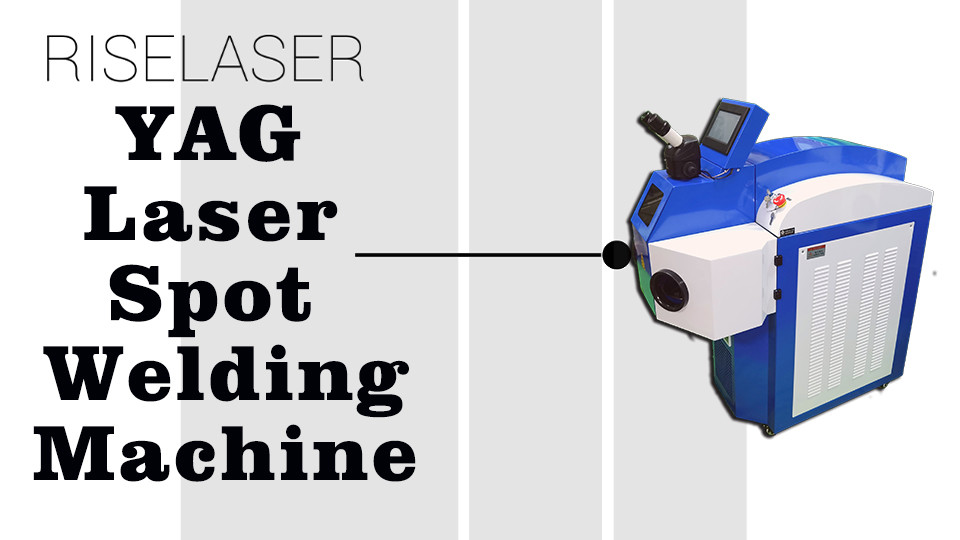

    80J 200W YAG Laser Welding Machine Jewellery Laser Solder Machine

    Ask Lasest Price
    Brand Name : Riselaser
    Model Number : RL-Y200
    Certification : CE
    Price : negotiation
    Payment Terms : Western Union, MoneyGram, T/T
    Delivery Time : 5-9 working days
    • Product Details
    • Company Profile

    80J 200W YAG Laser Welding Machine Jewellery Laser Solder Machine

    80J 200W YAG Laser Welding Machine Jewellery Laser Solder Machine


    Product introduction

    This welding machine is specially developed for perforation and spot welding of gold and silver jewelry. Laser spot welding is an important aspect of the application of laser processing technology. The spot welding process is heat conduction, that is, the surface of the workpiece is heated by laser radiation, and the surface heat is diffused into the interior through thermal conduction, and the width, energy, peak power and repetition frequency of the laser pulse are controlled to melt the workpiece to form a specific molten pool. Because of its unique advantages, it is widely used in the welding process of gold and silver jewelry and small and small parts.


    Product Features​
    1. It allows you to select the output power, frequency, pulse width and other parameters of the laser through the touch panel.
    2. It also has an automatic protection function to prevent misoperation and temperature fluctuations.
    3. The xenon lamp has a long working life and simple replacement operation.
    4. High-resolution CCD and microscope can be optionally equipped.


    Specification:​

    Model No.RL-Y100RL-Y150RL-Y200
    Laser SourceNd: YAG
    Laser Wavelength1064nm
    Rated Power100W150W200W
    Laser Energy40J60J80J
    Pulse Width≤20ms
    Pulse Frequency≤50Hz
    Beam Diameter0.1-3.0mm
    Power Supply220V±10% /50Hz
    Observing Systemmicroscope
    Chamber IlluminationLED lamps
    Parameters Memorization10 groups
    Protection Alertflow alert
    Language DisplayChinese/English
    Shield Gas SupplyOne line
    Cooling Systemwater cooling
    Power Consumption4KW5KW6KW
    Welding Chamber Dimensions300mm*450mm*150mm(L*W*H)
    Machine Dimensions920mm*560mm*1220mm (L*W*H)
    Running Environment5℃-30℃, 5%-75% humidity
    Net Weight70kg

    80J 200W YAG Laser Welding Machine Jewellery Laser Solder Machine


    Industry Application:

    Suitable for welding vacuum cups, stainless steel bowls, sensors, relays, tungsten wires, high-power diodes, aluminum alloys, laptop shells, mobile phone batteries, molds, electrical accessories, filters, nozzles, stainless steel products, golf heads, gold, silver And all zinc alloy products etc...

    80J 200W YAG Laser Welding Machine Jewellery Laser Solder Machine


    After-Sales Service

    * Warranty: Two years warranty for our machine.


    * Training service:

    We will supply the machine with training video and user's manual in English for installing, operation,to ensure you could use our machine well.
    We also offer free training at our factory if you could visit us.


    * Technical service:

    24 hours online service, lifelong technical support online video or by email to help you solve all the questions in use.

    Oversea service for training,installing, operating could be offered if necessary
