Desktop 40W Mini Portable Jewelry Laser Welding Machine for Gold Silver Stainless Steel Jewellery

    Buy cheap Desktop 40W Mini Portable Jewelry Laser Welding Machine for Gold Silver Stainless Steel Jewellery from wholesalers

    Buy cheap Desktop 40W Mini Portable Jewelry Laser Welding Machine for Gold Silver Stainless Steel Jewellery from wholesalers
    • Buy cheap Desktop 40W Mini Portable Jewelry Laser Welding Machine for Gold Silver Stainless Steel Jewellery from wholesalers
    • Buy cheap Desktop 40W Mini Portable Jewelry Laser Welding Machine for Gold Silver Stainless Steel Jewellery from wholesalers
    • Buy cheap Desktop 40W Mini Portable Jewelry Laser Welding Machine for Gold Silver Stainless Steel Jewellery from wholesalers
    • Buy cheap Desktop 40W Mini Portable Jewelry Laser Welding Machine for Gold Silver Stainless Steel Jewellery from wholesalers
    • Buy cheap Desktop 40W Mini Portable Jewelry Laser Welding Machine for Gold Silver Stainless Steel Jewellery from wholesalers

    Desktop 40W Mini Portable Jewelry Laser Welding Machine for Gold Silver Stainless Steel Jewellery

    Ask Lasest Price
    Brand Name : Riselaser
    Model Number : Magic Box 40W
    Certification : ISO, CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100 SET/WEEK
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    Desktop 40W Mini Portable Jewelry Laser Welding Machine for Gold Silver Stainless Steel Jewellery

    Magic Box 40W 40J Jewelry Laser Welding Machine Glasswear Detal Lab Use


    Magic Box 40W 40J Laser Spot Welding Machine For Jewelry Glasswear Laser Welding Machine Detal Lab Use


    Machine Description

    The Magic Box welder is an advanced welding machine that boasts cutting-edge technology for exceptional performance. Its digital microprocessor enables it to operate ten times faster than conventional systems, while accurately measuring high energy levels. This versatile machine is loaded with features including automatic regulation of power supply in real-time, a dual light LCD touch screen shutter, and an integrated internal camera for enhanced precision. Its laser light is automatically controlled to adjust the energy, ensuring consistent and accurate results.
    The Magic Box welder also offers superior cooling with efficient air cooling and six preset pulse shaping programs, as well as argon gas nozzles for direct welding. Workpieces in the working chamber are cooled by the air nozzles, and the large drawer makes chamber cleaning effortless. With 50 memory parameters, low noise, and low maintenance operation, the Magic Box welder is a dependable and powerful addition to any welding setup. Don't wait, order yours today!


    Machine specification


    ModelMagic Box 40W 40J
    Laser Type1064nm YAG Laser
    Beam Diameter0.2-2.0mm
    Pulse Width0.1-10ms
    Frequency1.0~10.0Hz Continuously Adjustable
    Maximum Laser Pulse Energy40J
    Host Power Consumption≤1.5KW
    Cooling SystemConvective air cooling
    Pump SourceXenon lamp
    Aiming and PositioningMicroscope + HD digital CCD camera system
    Operating ModeTouch Control
    Display Touch Screen10X high quality colorful Digital CCD
    Operating LanguageEnglish, Chinese
    Electrical Connection ValuesAC220V ± 5%, 50HZ / 60HZ
    Machine DimensionØ295mm x H282mm
    Wooden Package Dimension40x45x48CM
    Machine Net Weight13.5KG
    Operating Environmental Temperature≤45℃
    Humidity< 90% non-condensing
    ApplicationWelding and repairing all kinds of jewelry and metal parts

    Main features of the Magic Box


    1. Compared with ordinary laser spot welding machines, Magic Box has a fast boot time, and it only takes 2-5 seconds to enter the working state, which improves work efficiency and improves customer experience.

    Desktop 40W Mini Portable Jewelry Laser Welding Machine for Gold Silver Stainless Steel Jewellery
    2. Magic Box adopts air-cooled cooling method, built-in condensate, easy to start, no need to connect other equipment, no need to add cooling water, and it can be used after power on.

    Desktop 40W Mini Portable Jewelry Laser Welding Machine for Gold Silver Stainless Steel Jewellery
    3. The operation interface is simple, enter the boot interface to change the required parameters, such as energy percentage, pulse frequency, light spot

    Desktop 40W Mini Portable Jewelry Laser Welding Machine for Gold Silver Stainless Steel Jewellery
    4. The weight is only 13.5KG. Currently the smallest and lightest spot welder in the world, you can easily carry it to various shopping malls for custom repair work for your customers. Transportation and storage costs are thus greatly reduced.
    This machine is equipped with a digital screen. Different from the previous spot welding machines, the magic box will not flash the screen when it emits light, which makes the operator's eyes feel more comfortable and can observe more carefully.
    3. It is small in size and has a working energy of 40J, which can easily cope with welding work in various industries.
    4. The machine is equipped with a high-definition 10 times magnification microscope for professional welding operators
    5. Easy to use for both novice and mature operators

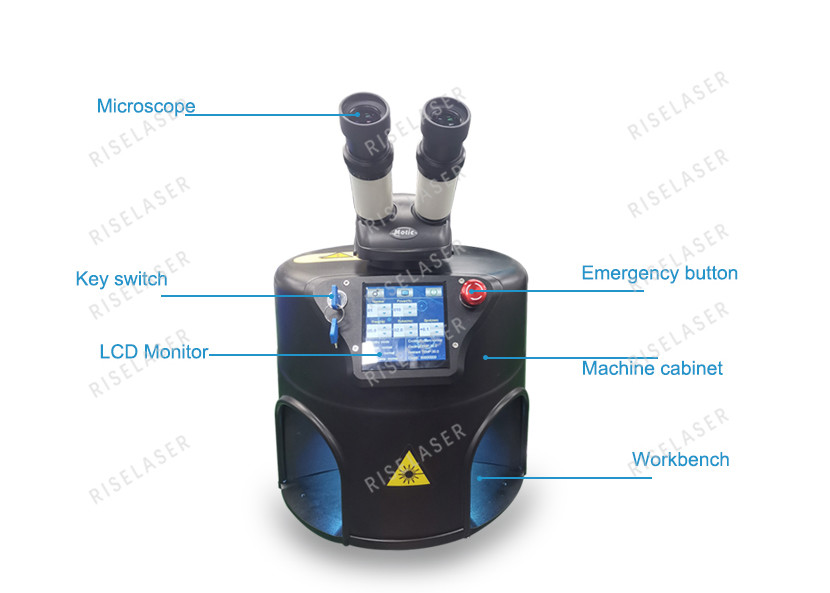

    Machine characteristics


    Desktop 40W Mini Portable Jewelry Laser Welding Machine for Gold Silver Stainless Steel JewelleryDesktop 40W Mini Portable Jewelry Laser Welding Machine for Gold Silver Stainless Steel Jewellery


    Comparing a Magic Box to a Mobile Phone in Terms of Picture Quality


    Desktop 40W Mini Portable Jewelry Laser Welding Machine for Gold Silver Stainless Steel Jewellery


    Machine dimension


    Desktop 40W Mini Portable Jewelry Laser Welding Machine for Gold Silver Stainless Steel Jewellery


    Application of Laser Technology

    Using laser technology, precious metals such as platinum, titanium, silver, and palladium can be seamlessly welded with ease. When soldering components using laser technology and solder material, the joints become precise and clean, eliminating the need for additional cleaning. In addition, laser technology can be employed to remedy casting defects such as blowholes or breakage. The process involves soldering the affected area with wire solder, which results in a flawless repair.


    Desktop 40W Mini Portable Jewelry Laser Welding Machine for Gold Silver Stainless Steel Jewellery

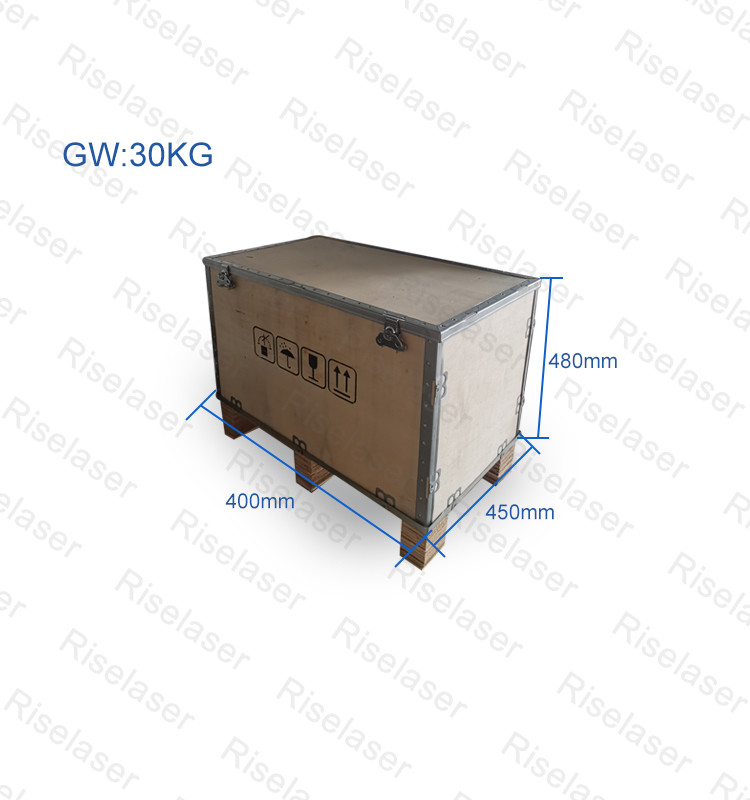

    Machine package

    Desktop 40W Mini Portable Jewelry Laser Welding Machine for Gold Silver Stainless Steel Jewellery


    Machine operation display
